Buy Now C type

C type (Angle type)

Flare type,  Oring type
Inch connection, mm connection
Thermostatic Expanvaion Valve
Thermal Expansion Valve
TEV,  TXV,  TX Valve

FUJIKOKI
Expansion Valve

for Car Air Conditioning

Made by

Fujikoki Thailand (FKTH)



3/8 Flare

CAE-1534QEX

3/8″ Flare

  • 1.5 ton
  • INLET      5/8″-18UNF
  • OUTLET  3/4″-16UNF

Universal type



3/8 Oring

CBE-1034QEX

3/8″ Oring

  • 1.0 ton
  • INLET      5/8″-18UNF
  • OUTLET  3/4″-16UNF

Universal type



3/8 Oring

CBE-1534QEX

3/8″ Oring

  • 1.5 ton
  • INLET      5/8″-18UNF
  • OUTLET  3/4″-16UNF

Universal type



5/16 Oring

CBE-10QFKT-1

5/16″ Oring

  • 1.0 ton
  • INLET      9/16″-18UNF
  • OUTLET  3/4″-16UNF

TOYOTA
HONDA
SUZUKI



M16/M20 Oring

CBE-10QTX-1

M16/M20  Oring

  • 1.0 ton
  • INLET      M16x1.5
  • OUTLET  M20x1.5

NISSAN
MITSUBISHI
MAZDA
SUZUKI



M16/M22 Oring

CBE-10K4QEX-1

M16/M22 Oring

  • 1.0 ton
  • INLET      M16x1.5
  • OUTLET  M22x1.5

TOYOTA
HONDA



5/16 Oring

CBE-15U4Q

5/16″ Oring

  • 1.5 ton
  • INLET      9/16″-18UNF
  • OUTLET  3/4″-16UNF

TOYOTA
HONDA
SUZUKI



M16/M20 Oring

CBE-15KMQEX

M16/M20 Oring

  • 1.5 ton
  • INLET      M16x1.5
  • OUTLET  M20x1.5

NISSAN
MITSUBISHI
MAZDA
SUZUKI

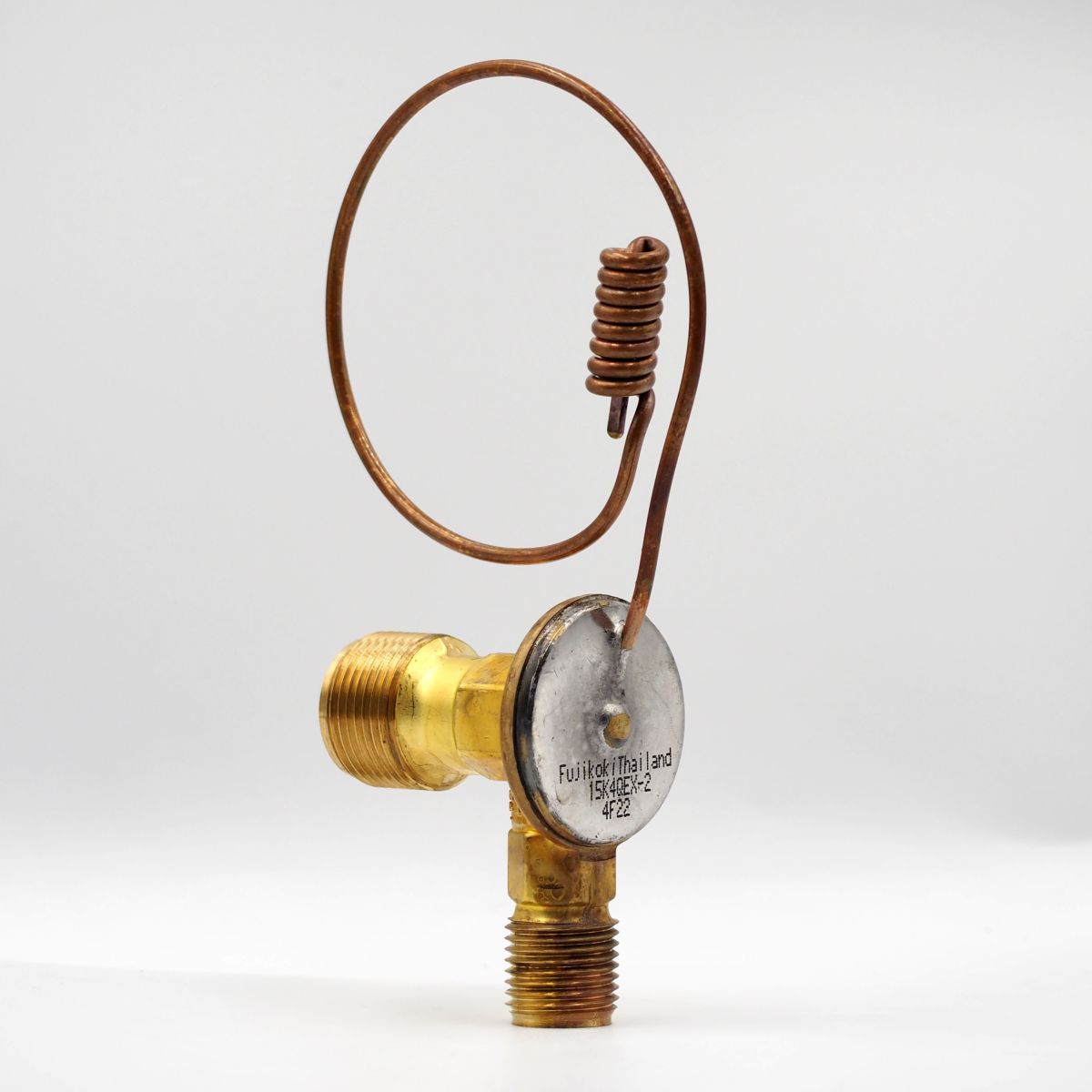

M16/M22 Oring

CBE-15K4QEX-2

M16/M22 Oring

  • 1.5 ton
  • INLET      M16x1.5
  • OUTLET  M22x1.5

TOYOTA
HONDA



HOW TO CHOOSE ?

This application contains only basic information about the car.

・Check the piping connection between!

 Compressor —  (INLET) Expansion Valve (OUTLET) —  Evaporator

・It should match the connection mentioned above.

・Alternatively, please verify the part number (model number)

or the connection of the existing expansion valve.”



C type List
C type Carton
