CBE-15KMQEX
[/et_pb_text][et_pb_text _builder_version=”4.21.0″ _module_preset=”default” global_colors_info=”{}”]
FUJIKOKI
M16/M20 Oring 1.5 ton
Expansion Valve TEV TXV for Car A/C
NISSAN, MITSUBISHI, MAZDA, SUZUKI
[/et_pb_text][et_pb_code _builder_version=”4.21.0″ _module_preset=”default” global_colors_info=”{}”]
| Called | Model | Ton | Inlet | Outlet | Car Compatibility |
|---|---|---|---|---|---|
| M16/M20 Oring | CBE-10QTX-1 | 1.0 | M16-1.5 | M20-1.5 | NISSAN, MITSUBISHI, MAZDA, SUZUKI |
| M16/M20 Oring | CBE-15KMQEX | 1.5 | M16-1.5 | M20-1.5 | NISSAN, MITSUBISHI, MAZDA, SUZUKI |
CBE-15KMQEX
Thermostatic Expansion Valve
for Automobile Air-Conditioning,
Angle type, C type
Made by
FUJIKOKI THAILAND (Original)
Parts No. CBE-15KMQEX
Applications Automobile air-conditioning
Applicable Refrigerant HFC-134a
Capacity USRT 1.5 ton
Nominal capacity 5.27 kW
Capirary Length 180 mm

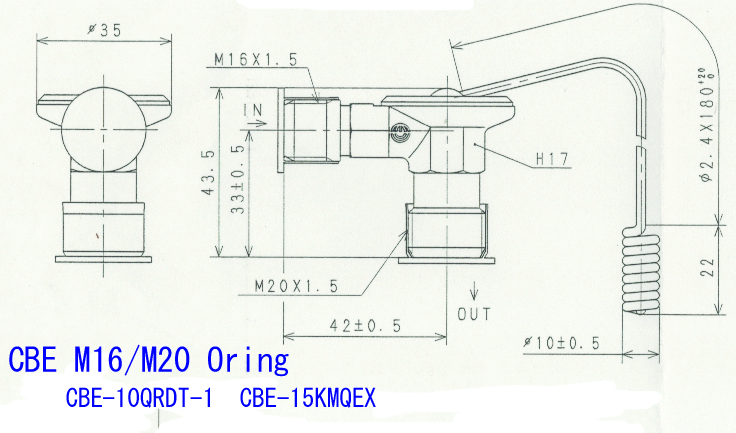

Connections M16/M20 Oring
Connection INLET M16x1.5
Connection OUTLET M20x1.5
Evaporator temperature range -5℃ to 10℃
Airtight proof HIGH 3.44 MPaG
Airtight proof LOW 1.67 MPaG
Pressure resistance 44.2 MPaG
Maximum working pressure 1.47 MPa
Thermostatic charge G Charge
Heat resistance 120 ℃
Equalizer Internal equalizing
Size 43.5xΦ35 mm
Material Brass
[/et_pb_text][/et_pb_column_inner][et_pb_column_inner type=”1_2″ saved_specialty_column_type=”3_4″ _builder_version=”4.21.0″ _module_preset=”default” global_colors_info=”{}”][et_pb_gallery gallery_ids=”649,650,651,652,653,654,655,656″ fullwidth=”on” _builder_version=”4.21.0″ _module_preset=”default” global_colors_info=”{}”][/et_pb_gallery][et_pb_video src=”https://expansionvalve.jp/wp-content/uploads/2023/05/CBE-15KMQEX.mp4″ _builder_version=”4.21.0″ _module_preset=”default” global_colors_info=”{}”][/et_pb_video][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner _builder_version=”4.21.0″ _module_preset=”default” custom_margin=”|||16px||” global_colors_info=”{}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.21.0″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://expansionvalve.jp/wp-content/uploads/2023/09/M1620DrawingCut.jpg” title_text=”M1620DrawingCut” _builder_version=”4.22.1″ _module_preset=”default” hover_enabled=”0″ global_colors_info=”{}” sticky_enabled=”0″][/et_pb_image][et_pb_text _builder_version=”4.21.0″ _module_preset=”default” text_text_color=”#E02B20″ header_text_color=”#000000″ border_width_all=”2px” border_color_all=”#E02B20″ global_colors_info=”{}”]
HOW TO CHOOSE ?
This application contains only basic information about the car.
・Check the piping connection between!
Compressor — (INLET) Expansion Valve (OUTLET) — Evaporator
・It should match the connection mentioned above.
・Alternatively, please verify the part number (model number)
or the connection of the existing expansion valve.”
