Fujikoki C Type Expansion Valves for Car A/C

The C type (angle type) thermostatic expansion valve is our main line: ten models for HFC-134a, chosen by the pipe connection on the vehicle. We also supply Fujikoki FWE, FFE and JBE valves for refrigeration and transport.

10C type models

5connection types

1.0 / 1.5ton (3.52 / 5.27 kW)

1987supplying since

Choose your C type Request a Quote

C type — choose by pipe connection

Check the connection on the car’s air-conditioning side first, then pick 1.0 or 1.5 ton. The car-maker grouping is typical only: replacement evaporator makers have mixed the models over the years.

3/8" FlareIN 5/8"-18UNF / OUT 3/4"-16UNF

CAE-1034QEX1.0 ton · 3.52 kW CAE-1534QEXMost ordered1.5 ton · 5.27 kW

Universal type — all cars

3/8" O-ringIN 5/8"-18UNF / OUT 3/4"-16UNF

CBE-1034QEX1.0 ton · 3.52 kW CBE-1534QEXMost ordered1.5 ton · 5.27 kW

Universal type — all cars

5/16" O-ringIN 9/16"-18UNF / OUT 3/4"-16UNF

CBE-10QFKT-11.0 ton · 3.52 kW CBE-15U4Q1.5 ton · 5.27 kW

Typically Toyota, Honda, Suzuki

M16 / M20 O-ringIN M16 x 1.5 / OUT M20 x 1.5

CBE-10QXT-11.0 ton · 3.52 kW CBE-15KMQEX1.5 ton · 5.27 kW

Typically Nissan, Mitsubishi, Mazda, Suzuki

M16 / M22 O-ringIN M16 x 1.5 / OUT M22 x 1.5

CBE-10K4QEX-11.0 ton · 3.52 kW CBE-15K4QEX-21.5 ton · 5.27 kW

Typically Toyota, Honda

Compare all 10 C type models →

How to choose

Check the piping connectionCompressor → (INLET) expansion valve (OUTLET) → evaporator.
Match the connectionThe valve should match the connection mentioned above.
Or check the old valveAlternatively, verify the part number (model number) or the connection of the existing expansion valve.

C type list (PDF, English)C type list (PDF, ภาษาไทย)

Most ordered connections

Share of C type sales volume by connection (as of September 2018).

3/8" Flare

35%

3/8" O-ring

33%

M16/M20 O-ring

10.8%

5/16" O-ring

10.7%

M16/M22 O-ring

10.7%

Refrigeration & transport valves — FWE · FFE · JBE

Our product range includes expansion valves for buses and refrigerated trucks. Fujikoki F series (FWE, FFE) and J series (JBE) valves have flare connections and can also be used in hot gas defrost cycles.

F series · Flare

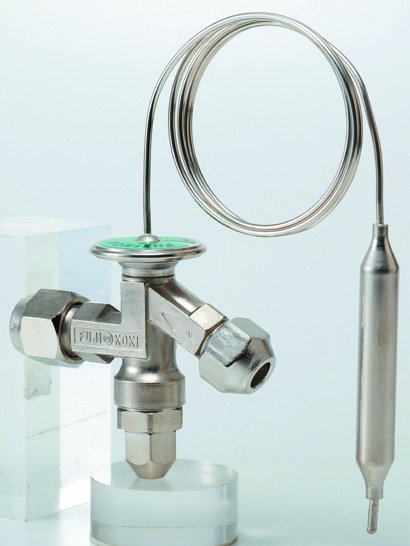

FWE Thermostatic Expansion Valve

Capacity: 0.35–17.6 kW
Pipe sizes: 3 sizes, 6.35–15.88 mm
Refrigerants: R134a, R407C, R404A, R410A

View FWE Request a Quote

F series · Flare · Build-to-order

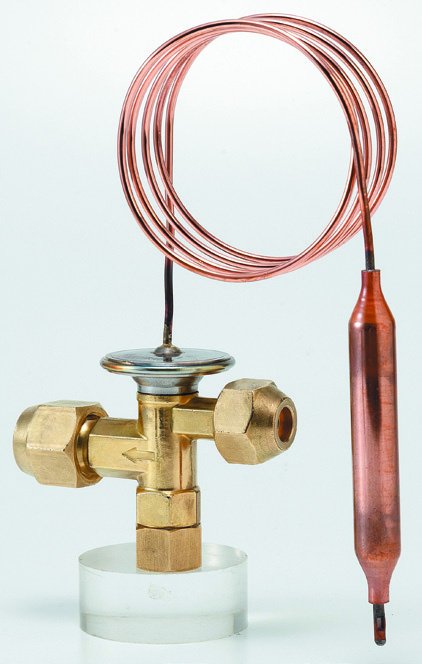

FFE Thermostatic Expansion Valve

Capacity: 1.1–17.6 kW
Pipe sizes: 2 sizes, 6.35–12.70 mm
Refrigerants: R134a, R407C, R404A, R410A

View FFE Request a Quote

J series · Flare

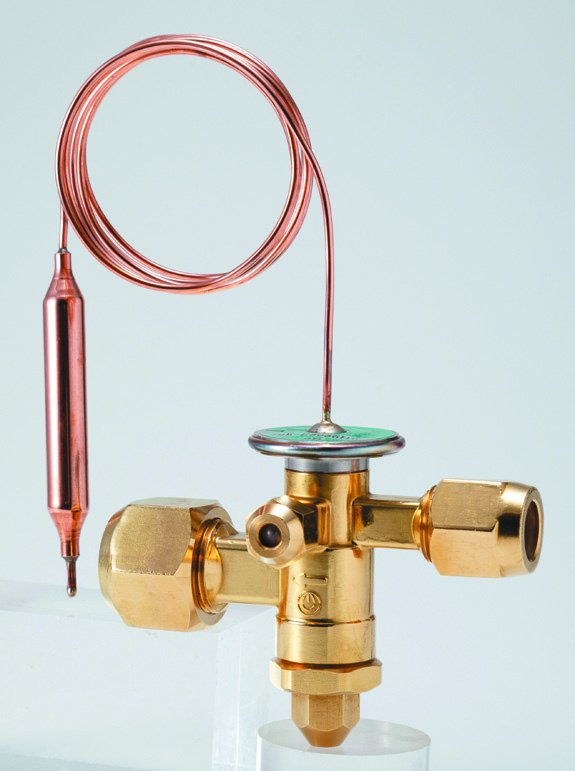

JBE Thermostatic Expansion Valve

Capacity: 10.6–105.5 kW
Pipe sizes: 3 sizes, 9.52–19.05 mm
Refrigerants: R134a, R407C, R404A, R410A

View JBE Request a Quote

Compare FWE, FFE and JBE →

Other automotive types

Reference

Our main line is the C type. G type and V type information is kept for reference — please ask us about availability.

G TypeAngle type, internal or external equalization V TypeBlock type / box type (VHE, VDE)

How an expansion valve works

Three forces, superheat, internal vs external equalization, sizing with sub-cool and installation tips — summarised from the Fujikoki product catalog.

Read the guide →

Genuine or copy?

Counterfeit Fujikoki Expansion Valve products are prevalent in the market. Fujikoki’s leaflet shows how to tell the logo, the origin marking and the finish apart.

See how to check →

Suntora Co., Ltd., Bangkok

Suntora has supplied Fujikoki expansion valves from Japan since 1987. In 2005, Fujikoki started producing C type valves at its factory in Thailand, and Suntora Co., Ltd. was established in Bangkok the same year.

About Suntora →

Tell us the connection — we will tell you the model

Send the vehicle, the pipe connection (or a photo of the old valve) and the quantity.

Request a Quote
