Type FFE Thermostatic Expansion Valve
Has a compact form factor (connection: flare) and can be used in hot gas defrost cycle as well. Evaporating temperature can be set according to the intended use.
Overview
This expansion valve can be used over a wide range of applications including cooling, air conditioning, refrigeration, freezing, and ecological equipment. It is also suitable for hot gas defrost cycle.
- Capacity
- 1.1–17.6 kW (nominal)
- Pipe sizes
- 6.35 (1/4) × 12.70 (1/2) mm (in)
9.52 (3/8) × 12.70 (1/2) mm (in) - Equalization
- Internal or external pressure equalization (E)
- Refrigerants
- R134a, R407C, R404A, R410A
- Connection
- Flare
FFE model list
The FFE type is supplied on a build-to-order basis.
| Internal eq. | External eq. | kW | Pipe in × out mm (in) | R134a | R407C | R404A | R410A | A | Quote |
|---|---|---|---|---|---|---|---|---|---|
| FFE-324□□ | FFE-E324□□ | 1.1 | 6.35 (1/4) × 12.70 (1/2) | ○ | ○ | ○ | – | 35 | Quote |
| FFE-524□□ | FFE-E524□□ | 1.8 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-1024□□ | FFE-E1024□□ | 3.5 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-1524□□ | FFE-E1524□□ | 5.3 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-334□□ | FFE-E334□□ | 1.1 | 9.52 (3/8) × 12.70 (1/2) | ○ | ○ | ○ | – | 34 | Quote |
| FFE-534□□ | FFE-E534□□ | 1.8 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-1034□□ | FFE-E1034□□ | 3.5 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-1534□□ | FFE-E1534□□ | 5.3 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-2034□□ | FFE-E2034□□ | 7.0 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-2534□□ | FFE-E2534□□ | 8.8 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-3034□□ | FFE-E3034□□ | 10.6 | ○ | ○ | ○ | ※ | Quote | ||
| FFE-4034□□ | FFE-E4034□□ | 14.1 | – | ○ | – | ※ | Quote | ||
| FFE-5034□□ | FFE-E5034□□ | 17.6 | – | ○ | – | – | Quote |
○Listed in the catalog※Build-to-order–Not listed for this refrigerant□□ = refrigerant code + evaporating temperature code (see below)Dimensions in mm
Specifications
| Adjustment range of static superheat | 1°C to 7°C (usually, adjustment is unnecessary — do not spin the adjusting nut) |
|---|---|
| Factory default setting | Static superheat: 3.5°C to 4.5°C |
| Maximum working pressure | R134a / R407C / R404A: 1.47 MPaG — R410A: 3.3 MPaG |
| Airtightness pressure | R134a / R407C / R404A: 1.67 MPaG — R410A: 3.4 MPaG |
| Withstand pressure | R134a / R407C / R404A: 4.42 MPaG — R410A: 4.5 MPaG |
| Charge system | Gas cross charge |
| Maximum ambient temperature | 120°C |
| Connection | Flare |
| Weight | 290 g (internal pressure equalization), 300 g (external pressure equalization) |
| Capillary / thermal sensing bulb | ø2.4 × 1000 mm / ø12.7 × 90 mm |
Evaporating temperature range
| Refrigerant | Wide (W) | Medium temperature (M) | Low temperature (L) |
|---|---|---|---|
| R134a | 10°C to -30°C | -1°C to -30°C | -18°C to -30°C |
| R407C | 10°C to -40°C | -1°C to -40°C | -18°C to -40°C |
| R404A | 10°C to -45°C | -1°C to -45°C | -18°C to -45°C |
| R410A | 10°C to -45°C | — | — |

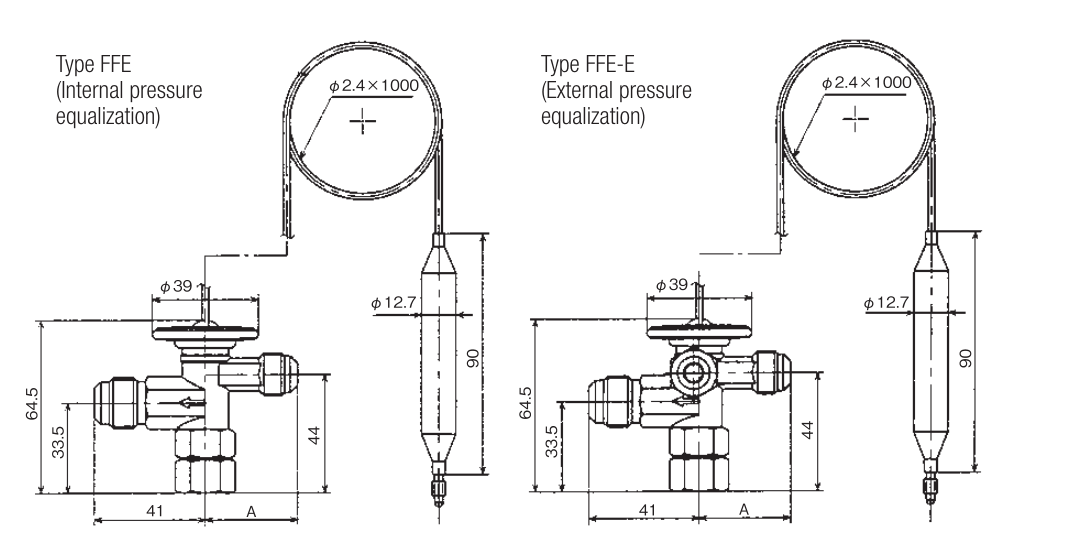

Dimensions
How to read the model number
Models of the F series are displayed as shown below (example: FFE-E1034NM).
FFEType
EExternal equalization
10Capacity
34Pipe code
NRefrigerant
MEvap. range
Equalizing systemE is appended for external equalization.
Refrigerant codeR134a: Q · R22/R407C: H · R404A: N · R410A: G
Evaporating temperature rangeWide use: W · Medium temperature use: M · Low temperature use: L
Capacity & pipe codeRead them from the model list (for example “1034” = 3.5 kW, 9.52 × 12.70 mm).
Notes
- Do not allow pressure higher than the airtightness pressure to be applied to the expansion valve when checking the airtightness of the piping.
- When using the R410A-compatible valve in a heat pump circuit, install the thermal sensing bulb and external equalizing tube between the 4-way valve and the accumulator (at the inlet side of the compressor).
- The R407C-compatible valve is designed on the basis of an R22-compatible obsolete model, so its values may differ slightly from those listed.
- For mounting the thermal sensing bulb, see installation tips.
Specifications: FUJIKOKI Product Catalog (2016), page 9.
